LT Vision은
3D VMP(Video Management Platform)는 엘티메트릭㈜에서 개발한 최신 영상관제통합플랫폼으로, 최신 AI CCTV, 3D 실내〮외 공간정보, 영상 BigData, 개방형 API 등 최신 기술과 다양한 확장성을 제공합니다

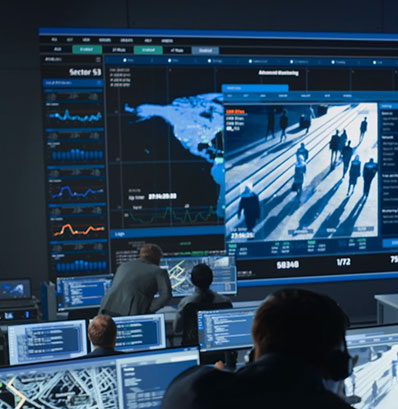

지능형 CCTV 통합관리 플랫폼, LT Vision

인공지능 기반의 영상분석기술을 도입한 AI CCTV 제품으로, 카메라가 포착한 장면을 AI가 실시간으로 분석하여 위급 상황을 탐지하고 신속한 대응을 지원합니다. 또한 NVR을 통해 고성능으로 실시간/녹화 영상을 모니터링할 수 있고 검색 및 관리할 수 있도록 지원합니다.

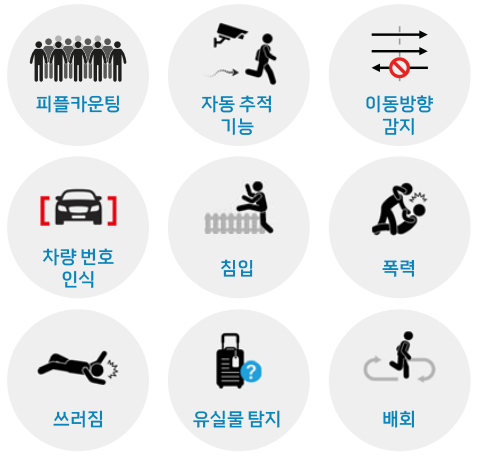

주요기능

AI 최신 기술을 적용한 직관적이고 활용도 높은 3D 통합관리 플랫폼 구축
군집 탐지 및 피플카운팅 기능 구축
특정인(실종자, 용의자) 탐지 및 동선 추적지원 기능 구축
AI 스마트 검색(마스크, 안경, 상하의 색상 등으로 검색) 기능 구축
영상압축을 통해 신속한 검색 및 요약 보기 기능 구축
이상행동 패턴감지 및 선별 관제 기술을 이용한 실시간 감지 기능 구축
영상정보 반출을 위한 영상 비식별화 기능 구축
영상분석 인식률 개선을 위한 자체 AI 재학습 기능 구축

Sensor	1/1.8" CMOS Image Sensor
Zoom	Optical 40x, Digital 16x
Focal length	f = 6.5mm ~ 260mm
Angle of view	Horizontal : 64.1°(wide) ~ 1.6°(tele), Vertical : 38.1°(wide) ~ 0.95°(tele)
Maximum aperture ratio	F1.4(wide) ~ F4.9(tele)
Min object distance	3m
Focus control	Oneshot AF
Lens type	DC auto iris
Min illumination	Color : 0.005 Lux(1/30sec, 30IRE) / BW : 0 Lux(IR ON)
Electronic shutter speed	1/1 ~ 1/100,000 sec
Day & Night	Day / Night / Auto
Back light compensation	BLC / HLC / WDR
White balance	Auto tracing white / Auto white / Manual
Gain Control	Auto
Noise reduction	Auto / Manual
Image stabilization	EIS(Gyro sensor)
Defog	Support
Image rotation	Horizontal(Mirror) / Vertical(Flip)

Motion detection	8 regions on 23x15 cells
Privacy masking	8 regions (polygon of 8 points)
Auto tracking	Human / Vehicle / Locked target
IR LED	11 pieces, 400m
Video analytics	Motion detection, Object detection, Object tracking, Face detection, Intrusion detection, Missing object detection, Abandoned object detection, Line counting, ANPR Vehicle speed detection, Directional detection, Defocus detection, Object blurring
Burn-in-OSD	Camera title, direction, user-defined, Multi-lingual: (English, Korean, French, German, Spanish, Italian, Russian, Japanese, Swedish, Portuguese, Dutch, Hungarian, Finnish, Special Symbols)

Compression	H.264 / H.265 / MJPEG
Frame rate	Max 30fps @ 3840x2160
Bitrate control	H.264/H.265: CBR / VBR / Hybrid, MJPEG: VBR
Resolutions	3840x2160 ~ 352x240
Streaming	Quad Streaming: Primary : H.264 / H.265, Secondary x 3 : H.264 / H.265 / MJPEG

Compression	G.711 u-law
Sampling rate	G.711: 8KHz
Bitrate	G.711: 64Kbps
Streaming	Full-duplex
Input & Output	1 x Line-In (mono), 1 x Line-Out (mono)

Event sources	Video analytics, Audio detection, Client disconnection, Sensor input, Shock detection, User-defined event
Event actions	E-mail notification, OSD alert, FTP upload, PTZ preset, Alarm control, Recording, HTTP action

LT Vision 제품

지능형 CCTV 통합관리 플랫폼, LT Vision

제품소개

AI CCTV

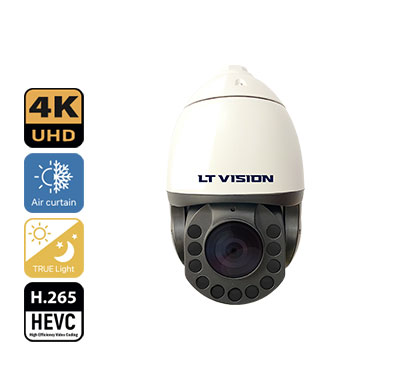

LT 3D Vision AI PTZ

LT 3D Vision AI Bullet

LT 3D Vision AI Dome

VMS / NVR

LT 3D Vision VM/
NVR Software

Pan range	360° (endless)
Pan speed	Preset max speed: 400°/sec,Manual speed: 0.065°/sec ~250°/sec
Tilt range	105°(-15°~90°)
Tilt speed	Preset max speed: 280°/sec,Manual speed: 0.065°/sec ~ 175°/sec
PTZ functions	Preset (500), Pattern (4), Swing (8), Group (8), Auto parking, Auto tracking

Interface	Ethernet 10/100base-T (RJ-45)
Protocol	IPv4/v6, TCP, UDP, IGMP(Multicast), ICMP, DHCP, HTTP, HTTPS, RTP, RTSP,FTP, SNMP, SMTP, UPnP, WS-Discovery, Zero Configuration, NTP, DDNS, RTMP
Security	Basic/Digest authentication, HTTPS, IP address filtering, User access log, TTA certification
Application programming interface	ONVIF, PSIA, MPEG-TS

Power supply	Min AC24V/3.0A
Power consumption	AC24V : Max 63W
Operating condition	-30°C ~ 70°C / Less than 90% RH
Storage condition	-50°C ~ 60°C / Less than 95% RH

Certifications	IP66, IK10, KC
External devices	4 x Sensor-In (dry contact, NO/NC) 2 x Alarm-Out (dry contact, NO) 1 x RS-485 port : Direct PTZ control etc.
Edge storage	Micro SD/SDHC/SDXC (Max 512GB)
Color/Material	Body: White / Aluminium Head: Black / Aluminium Side cover: Black / PC
RAL code	White: RAL9016, Black: RAL9005
Dimension	Ø226 x 364mm
Weight	5,750g

· 모델명	: LTV-P5N840N20R
· F/W 버전명	: V13.307B09_T101
· F/W 파일명	: V13.307B09.tus
· F/W 해시 값	: 5347a744dc190904b3d9c2d2ca1acbee8bbf8c96b4e50139f5e7acdbcd3e5818

Sensor	1/1.8" CMOS Image Sensor
Zoom	Optical 18x
focal length	f = 6.8 ~ 122.4mm
Angle of view	Horizontal : 58.4°(wide) ~ 3.2°(tele), Vertical : 35°(wide) ~ 1.9°(tele)
Maximum aperture ratio	F1.61 ~ F4.13
Focus comtrol	Oneshot AF
Lens type	DC auto iris
Min illumination	Color : 0.01 Lux(1/30sec, 30IRE) / BW : 0 Lux(IR ON)
Electronic shutter speed	1/1 ~ 1/100,000 sec
Day & Night	Day / Night / Auto
Back light compensation	BLC / HLC / WDR
White balance	Auto tracing white / Auto white / Manual
Gain Control	Auto
Noise reduction	Auto / Manual
Image stabilization	Support
Defog	Support
Image rotation	Horizontal(Mirror) / Vertical(Flip)

Motion detection	8 regions on 23x15 cells
Privacy masking	8 regions (polygons of 8 points)
IR LED	8 pieces, Max 80m
Video analytics	Motion detection, Object detection, Object tracking, Face detection, Intrusion detection, Missing object detection, Abandoned object detection, Line counting, ANPR Vehicle speed detection, Directional detection, Defocus detection, Object blurring
Burn-in-OSD	Camera title, direction, user-defined Multi-lingual (English, Korean, French, German, Spanish, Italian, Russian, Japanese, Swedish, Portuguese, Dutch, Hungarian, Finnish, Special Symbols)

Compression	H.264 / H.265 / MJPEG
Frame rate	Max 30fps @ 3840x2160
Bitrate	Primary: 32Kbps ~ 16Mbps, Secondary: 32Kbps ~ 4Mbps
Bitrate control	H.264/H.265: CBR / VBR / Hybrid, MJPEG: VBR
Resolutions	3840x2160 ~ 352x240
Streaming	Quad Streaming Primary : H.264 / H.265, Secondary x 3 : H.264 / H.265 / MJPEG

Compression	G.711 u-law
Sampling rate	G.711: 8KHz
Bitrate	G.711: 64Kbps
Streaming	Full-duplex
Input & Output	1 x Line-In (mono), 1 x Line-Out (mono)

Event sources	Video analytics, Audio detection, Client disconnection, Sensor input, Shock detection, User-defined event
Event actions	E-mail notification, OSD alert, FTP upload, PTZ preset, Alarm control, Recording, HTTP action

Power supply	DC 12V/3.0A, PoE(Power over Ethernet) : 802.3at
Power consumption	DC12V/PoE : Max 30W
Operating condition	-20°C ~ 70°C / Less than 90% RH
Storage condition	-50°C ~ 60°C / Less than 95% RH

Certifications	IP67, IK10, KC
External devices	1 x Sensor-In (dry contact, NO/NC) 1 x Alarm-Out (dry contact, NO) 1 x RS-485 port : Z/F control etc.
Edge storage	Micro SD/SDHC/SDXC (Max 512GB)
Color/Material	Body: Gray / Alluminium Head: Gray / Alluminium
RAL code	White: TBD Black: TBD
Dimension	Ø108 x 391.5mm
Weight	1,750 g

Power supply	Min DC12V/3.0A, PoE(Power over Ethernet) 802.3af
Power consumption	DC12V/PoE : Max 15W
Operating condition	-20℃ ~ 60℃ / Less than 90% RH
Storage condition	-50°C ~ 60°C / Less than 95% RH

Certifications	IP67, KC
External devices	1 x Sensor-In(dry contact, NO/NC) 1 x Alarm-Out(dry contact, NO)
Edge storage	Micro SD/SDHC/SDXC (Max 512GB)
Color/Material	White : Aluminium
RAL code	White : TBD, Black : TBD
Dimension	Φ 148 x 123 mm
Weight	1.2Kg

Interface	Ethernet 10/100/1000 base-T (RJ-45)
Protocol	IPv4/v6, TCP, UDP, IGMP(Multicast), ICMP, DHCP, HTTP, HTTPS, RTP, RTSP, FTP, SNMP, SMTP, UPnP, WS-Discovery, Zero Configuration, NTP, DDNS, RTMP
Security	Basic/Digest authentication, HTTPS, IP address filtering, User access log, TTA certification
Application programming interface	ONVIF, PSIA, MPEG-TS

· 모델명	: LTV-B3818K1R
· F/W 버전명	: V13.307B09_T101
· F/W 파일명	: V13.307B09.tus
· F/W 해시 값	: 5347a744dc190904b3d9c2d2ca1acbee8bbf8c96b4e50139f5e7acdbcd3e5818

Sensor	1/2.8" CMOS Image Sensor
Zoom	Optical 4x
focal length	f = 3.3 ~ 13.2mm
Angle of view	Horizontal - 107°(wide) ~ 2.7°(tele), Vertical : 55.8°(wide) ~ 14.0°(tele)
Maximum aperture ratio	F1.62 ~ F3.1
Focus control	Oneshot AF
Lens type	P iris
Min illumination	Color : 0.01 Lux(1/30sec, 30IRE) / BW : 0 Lux(IR ON)
Electronic shutter speed	1/1 ~ 1/100,000 sec
Day & Night	Day / Night / Auto
Back light compensation	BLC / HLC / WDR
White balance	Auto tracing white / Auto white / Manual
Gain Control	Auto
Noise reduction	Auto / Manual
Image stabilization	Support
Defog	Support
Image rotation	Horizontal(Mirror), Vertical(Flip)

Compression	G.711u-low
Sampling rate	G.711:8KHz
Bitrate	G.711:64Kbps
Streaming	Full-duplex
Input & Output	1 x Line-In(mono), 1 x Line-Out(mono)

· 모델명	: LTV-D48041R
· F/W 버전명	: V13.307B09_T101
· F/W 파일명	: V13.307B09.tus
· F/W 해시 값	: 5347a744dc190904b3d9c2d2ca1acbee8bbf8c96b4e50139f5e7acdbcd3e5818

· 모델명	: LTM-SMARTMG
· S/W 버전명	: v1.5.20230904.1422
· S/W 파일명	: Setup_VoostNVR_v1.5.20230904.1422.exe
· S/W 해시 값	: b35908a98fef13b4b01108409dead3d8bdf064f98c7b076b03b7b8833856a21d
